Precision Mechanisms | Optomechanical R&D | Process Development
THE CHALLENGE
Conform thin CMOS image sensors to a controlled curved surface without fracture or loss of electrical function, enabling simpler high-performance optical systems.
Conform thin CMOS image sensors to a controlled curved surface without fracture or loss of electrical function, enabling simpler high-performance optical systems.
MY CONTRIBUTION
I developed precision fixtures and processes for bending, positioning, and bonding the sensors to curved molds. I designed machined tooling, controlled the loading and alignment approach, and used Keyence confocal metrology to generate high-density surface maps for shape verification and process refinement.
I developed precision fixtures and processes for bending, positioning, and bonding the sensors to curved molds. I designed machined tooling, controlled the loading and alignment approach, and used Keyence confocal metrology to generate high-density surface maps for shape verification and process refinement.
OUTCOME
The team produced three functional curved sensors that were demonstrated in a working f/1.2 camera, validating both the mechanical process and the optical concept.
The team produced three functional curved sensors that were demonstrated in a working f/1.2 camera, validating both the mechanical process and the optical concept.
SELECTED EVIDENCE

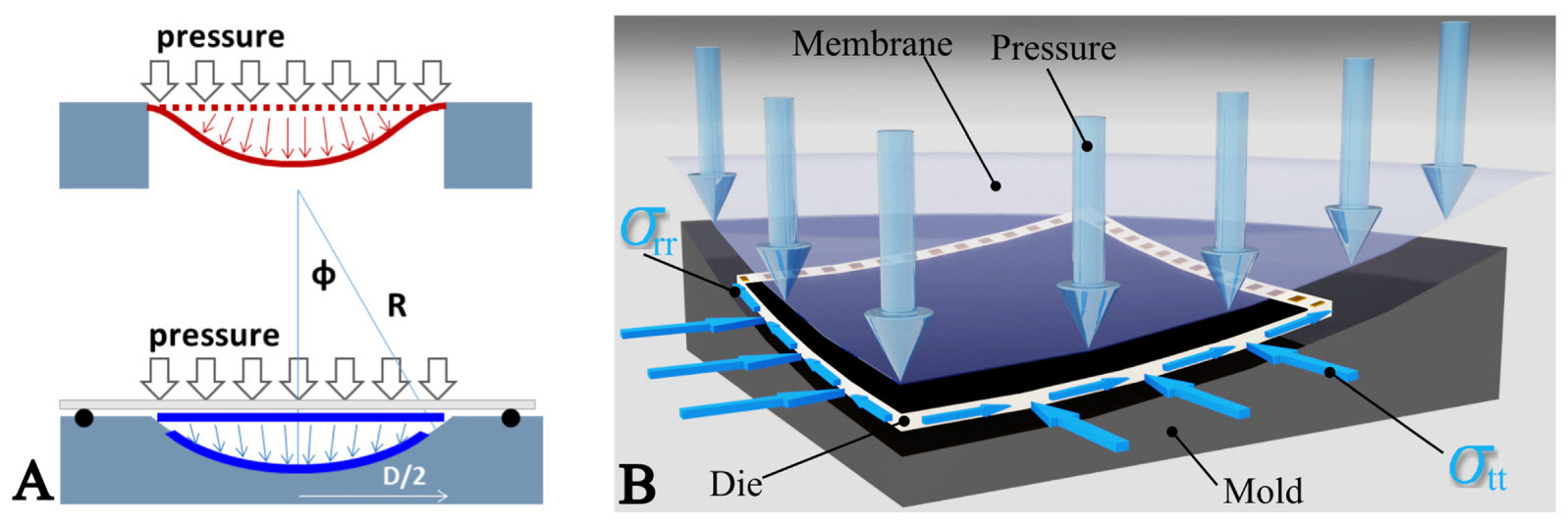

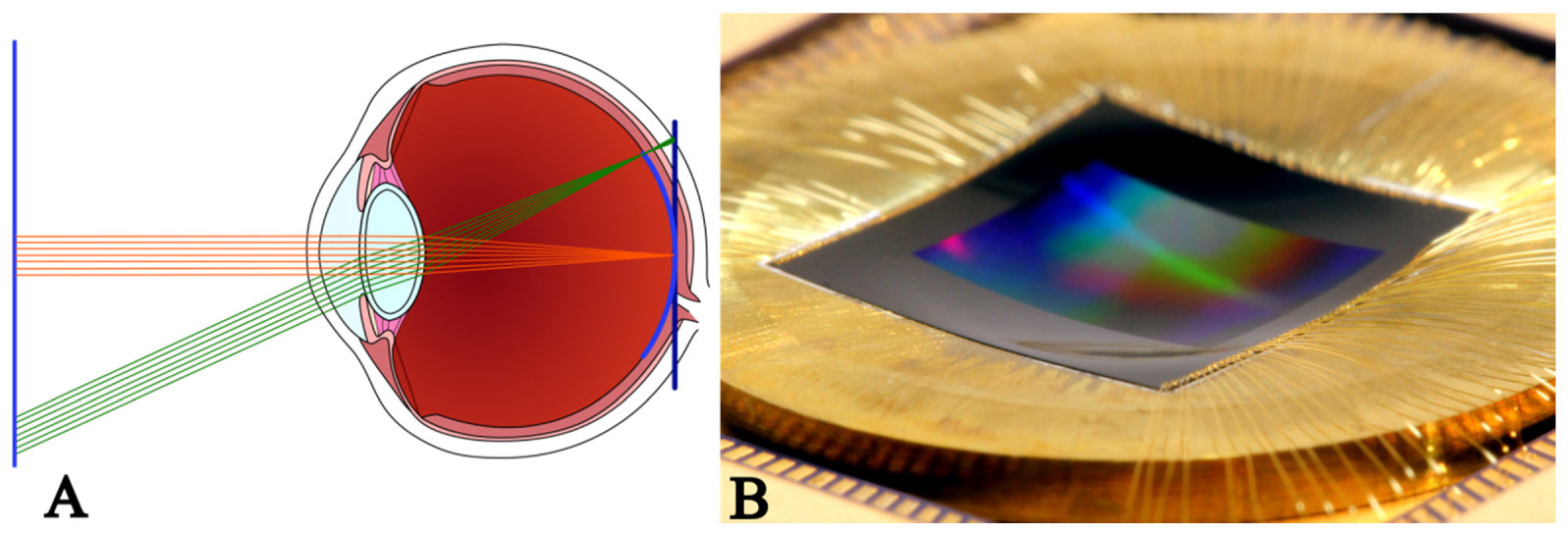

Published bending-fixture schematic, optical concept and completed sensor image, fixture photographs, bonded-device images, and stitched Keyence height maps where available.
Published bending-fixture schematic, optical concept and completed sensor image, fixture photographs, bonded-device images, and stitched Keyence height maps where available.
SKILLS
Precision mechanisms · Optomechanical design · SolidWorks · Fixture design · Metrology · Keyence confocal microscopy · Process development · Adhesive bonding · Experimental design · Root-cause analysis
